Description
Key Benefits

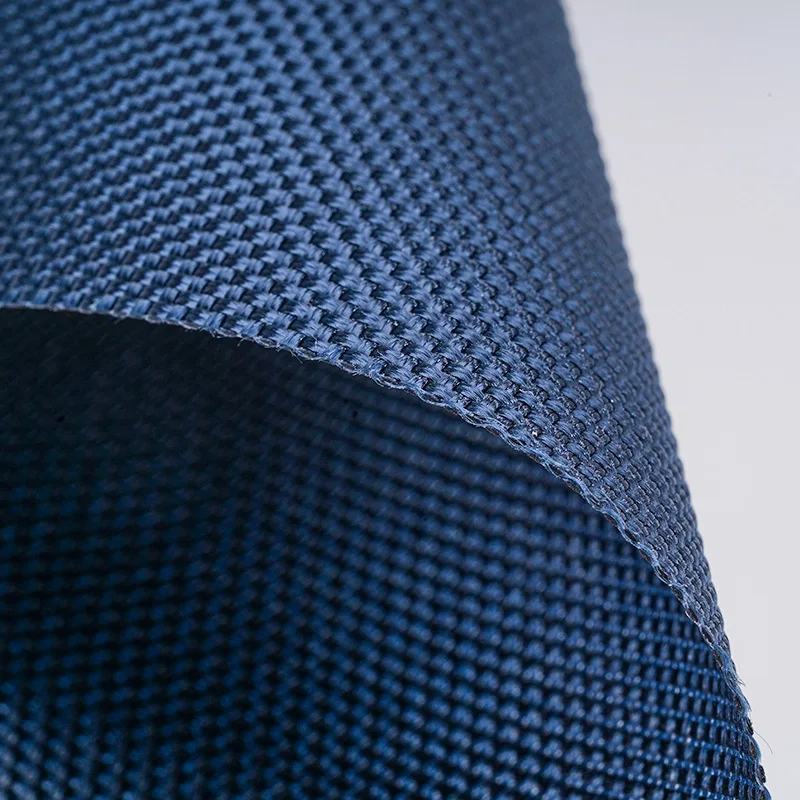

This is a heavy-duty 100 Percent Nylon Ballistic 1680D Oxford fabric engineered with a high-quality PU/PVC coating on the reverse side. What does this mean for you? It means you get a textile that resists abrasion, punctures, and tearing while providing a reliable waterproof barrier. Whether you are manufacturing tactical gear, premium luggage, or industrial covers, this fabric is built to protect your goods from the elements and daily wear. The tight 1680D weave structure offers superior dimensional stability, so your finished products hold their shape under heavy loads.
Why choose this specific nylon over standard polyester? Nylon inherently offers higher tensile strength and better elastic recovery than polyester. When combined with the Ballistic weave and a robust PU/PVC coating, you get a material that handles extreme friction without fraying. I have personally used this grade of fabric for prototyping heavy-duty duffel bags, and the difference in feel and longevity versus standard 600D polyester is night and day. It feels stiff initially, but once broken in, it provides a rigid, protective shell that instills confidence.
For manufacturers, this fabric is easy to cut and sew with standard industrial equipment, though we recommend using a size 16-18 needle to prevent skipped stitches. The coating also allows for high-frequency welding if you need to create fully sealed seams. If you are looking for a breathable alternative for outdoor clothing, please check our 100 Percent Waterproof PU Coating 272 Twill Nylon Oxford Fabric instead. This 1680D variant is specifically optimized for hardgoods and cases where rigidity is paramount.
Superior Abrasion and Tear Resistance

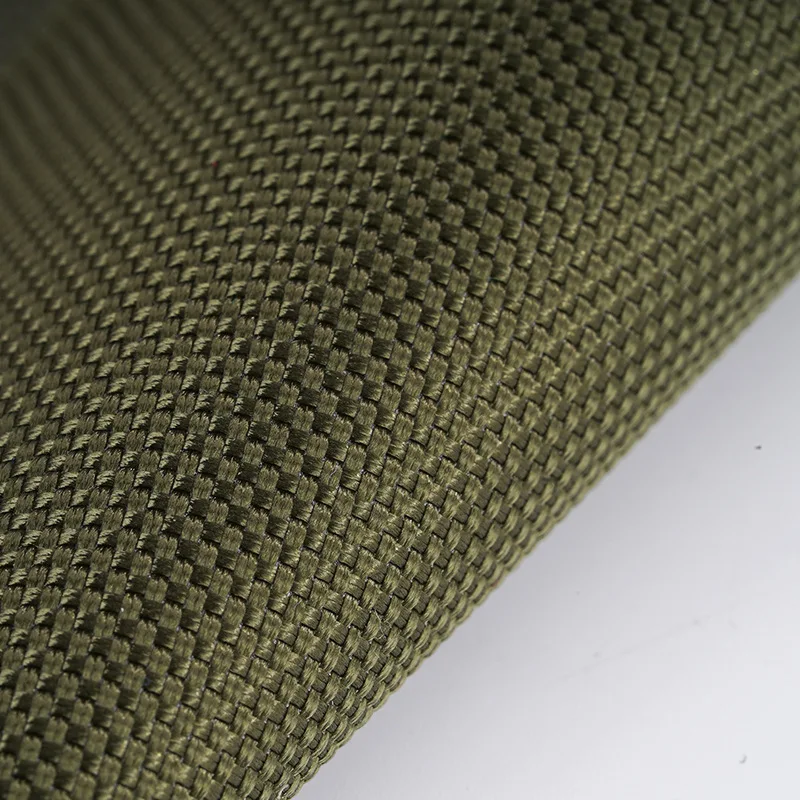

- Ballistic Weave Structure: The 2×2 basket weave pattern distributes stress across multiple yarns, preventing localized tearing. Benefit: Extends the lifespan of your product even when dragged across concrete or rough terrain.
- 1680D Nylon Yarns: High denier per filament count means thicker, stronger individual threads. Benefit: Provides a tactile “armored” feel that reassures end-users of premium quality.
- High-Quality PU/PVC Coating: The coating adds a slick surface that allows the fabric to slide over obstacles rather than snagging. Benefit: Reduces the risk of punctures in sharp-corner environments like airline cargo holds.
Waterproof Protection and Easy Maintenance

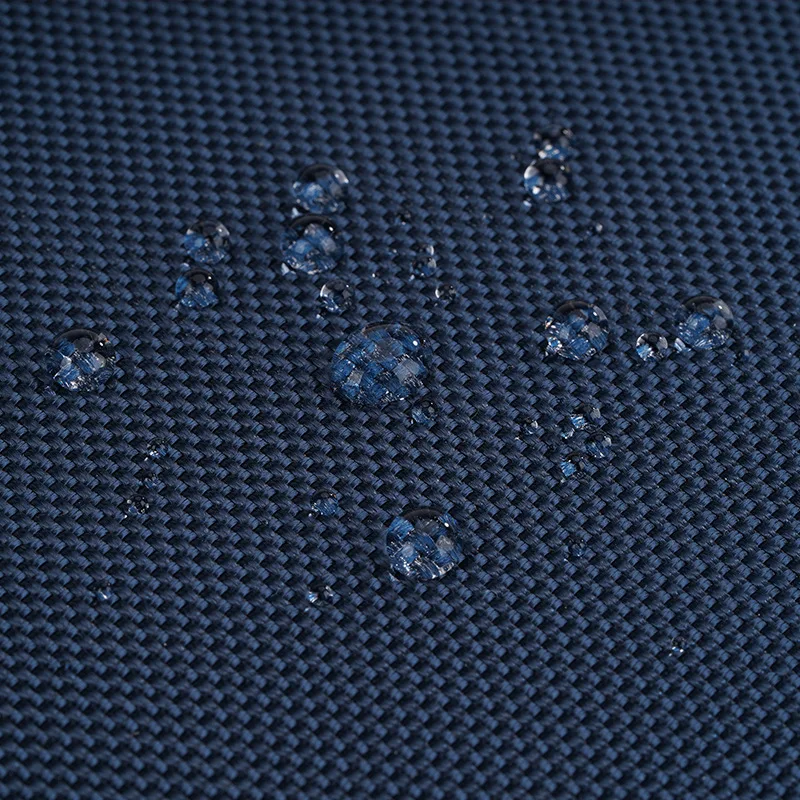

- 100 Percent Waterproof Barrier: The coating ensures a hydrostatic head rating suitable for heavy rain. Benefit: Keeps electronics, clothing, and gear completely dry in a downpour.
- Stain Resistance: Dirt and grime sit on the surface rather than soaking into the fibers. Benefit: Simple wiping with a damp cloth restores the original look, saving time on cleaning.
- UV Stabilized Coating: Prevents the coating from becoming brittle or chalky under prolonged sun exposure. Benefit: Maintains flexibility and waterproofing integrity over years of outdoor use.
Real Customer Feedback
“We switched our entire line of camera cases to this 1680D nylon after testing four different suppliers. The stiffness is perfect for protecting glass lenses, and the PU coating has held up through two field seasons in the Pacific Northwest. No delamination, no leaks. Our return rate due to fabric failure dropped to zero.”
— Marcus T., Senior Product Engineer, Outdoor Optics Manufacturing
Comparison with Standard 600D Polyester
| Property | This 1680D Nylon Ballistic | Standard 600D Polyester Oxford |
|---|---|---|
| Fiber Type | 100 Percent Nylon | 100 Percent Polyester |
| Tensile Strength | High (approx. 2500N) | Moderate (approx. 1200N) |
| Abrasion Resistance (Taber) | Excellent (5000+ cycles) | Good (2000 cycles) |
| Waterproof Coating | PU/PVC Heavy Duty | PU Light or None |
| Typical Weight | Approx. 380-420 GSM | Approx. 180-250 GSM |
| Flexibility | Rigid, holds shape | Soft, drapes easily |
Technical Specifications
- Material Composition: 100 Percent Nylon Filament Yarn
- Weave Type: Ballistic (2×2 Basket)
- Yarn Count: 1680D (Double Twisted)
- Coating: High-Quality PU (Polyurethane) / PVC (Polyvinyl Chloride) on Backside
- Waterproof Rating: 100 Percent Waterproof (Hydrostatic Head > 3000mm)
- Width: 150cm (59 Inches)
- GSM (Weight): 400g +/- 5 Percent
- Colorfastness: Grade 4-5 (Excellent)
- Certifications: RoHS Compliant, REACH Compliant (No Restricted Heavy Metals)
Ideal Applications
- Heavy-Duty Backpacks and Tactical Molle Gear
- Luggage Shells and Wheeled Duffels
- Firefighter Tool Bags and Tool Rolls
- Motorcycle Seat Covers and Saddlebags
- Industrial Machine Covers and Tarpaulins
FAQ
What is the difference between the PU and PVC coating on this fabric?
The PU (Polyurethane) layer provides flexibility and a softer hand feel, while the PVC (Polyvinyl Chloride) component adds rigidity and a higher degree of chemical resistance. The combination creates a hybrid barrier that is stiffer than pure PU but more flexible than pure PVC, making it ideal for structured bags and cases that need to resist punctures from sharp tools or gear.
Can I weld the seams with RF or Hot Air machinery?
Yes. The PVC component in the coating responds well to high-frequency (RF) welding and hot air seam sealing. This allows you to create fully waterproof, taped seams that prevent water ingress through stitch holes. We recommend testing a small sample with your specific machine settings to dial in the temperature and pressure, as the nylon face dissipates heat differently than polyester.
Is this fabric suitable for sewing with standard home machines?
Technically possible, but not recommended. The fabric is quite thick and rigid. You will need a heavy-duty industrial machine with a walking foot and needles sized 16-22. Home machines will likely jam or skip stitches. For lighter applications like removable liners or pouches, consider our Custom 100 Percent Polyester Oxford Fabric Single Dye Water-Proof Lining for Luggage which sews much easier.
How do I care for the fabric to maintain its waterproof coating?
Simply wipe with a soft, damp cloth and mild soap. Do not machine wash or dry clean, as solvents will degrade the PVC layer. Avoid folding sharply in the same spot repeatedly, as this can crack the coating over time. When storing, roll the fabric rather than folding it to maximize the lifespan of the waterproof barrier.
Can this fabric be used for personal items like laptop sleeves?
Absolutely. While it is heavy, it provides unmatched protection for sensitive electronics. We have seen customers use it to make hard-shell laptop folios and camera cube inserts. If you are also producing accessories to complement your main bags, you might be interested in our Hot Sale Magnetic Quick Dry Waffle Golf Towel for Club Cleaning—not for the same material, but for cross-selling a complete gear ecosystem to your customers who buy premium tactical or outdoor products.
Does the coating peel off over time?
With our high-quality PU/PVC formulation, delamination is highly unlikely under normal use. The coating is applied via a direct calendar method, not a simple spray, which ensures a strong mechanical bond to the nylon face. The main reason coatings fail is excessive dry-cleaning or exposure to temperatures above 180 degrees Fahrenheit for extended periods. Avoid those, and this fabric will outlast the stitching.
